AuJet HC2000 High Resolution Ink-jet Printer

• Operation and Control System comes with HC2000 , stable , independently . Enhanced anti-jamming device
• Multilingual options ,Select interface languages can be customised according to customer requirements as set
• Can print more than 20 kinds of text, edit information can rotate 90 degrees
• Own printing character, but also according to customer requirements with the need to add fonts
• Freely transferred to other applications and print design with a bitmap (BMP) or JPEG file format pattern
• Real-time Print the current time, production date, and the product serial number (serial number) of the Code Print (increase / reduction control, any jump step number) and other features;
• Can print a variety of standard bar code
• Open communications protocol, can be connected to a database (EXCEL, ACCESS), and to support ActiveX, you can print random code (garbled or security code) and the security bar codes, etc.;
• HC2000 operation control system can precisely adjust the print position to meet the production line to print the location of different product requirements; * user friendly design, the status indicator light to show real-time printing status
• The control system, not only has a very powerful printing functions, and learn to understand

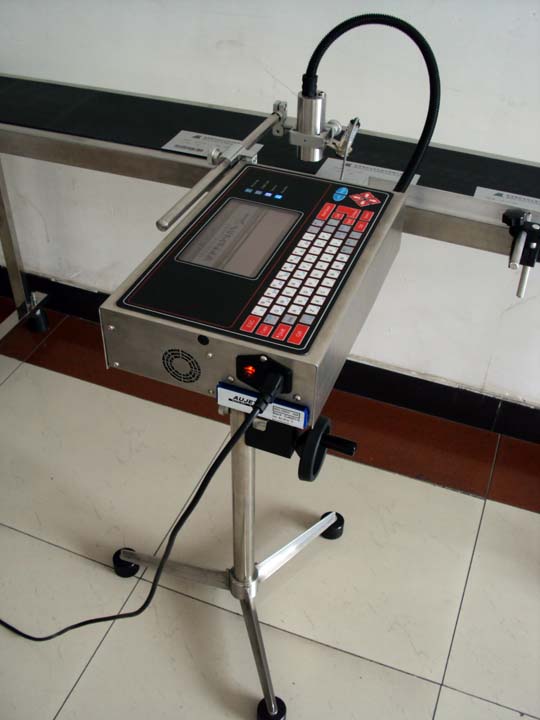

HC2000 High Resolution Ink-jet Printer


1. System :? KADEX operation control system, free graphical text editor, WYSIWYG
2. Software function: Can easily edit symbols,texts,numbers and barcode,the specially function is whatever you preview is ,whatever is printed exactly .
3. Display:  all printing parameters are display on screen,clear information!
4. Printing Resolution DPI£º 200  DPI
5. Status display: Red light ( Sensor is working); Yelllow light (Encoder is working). Green light (Printing is working); White light ( Computer connection is working)
6. Printing fonts£ºHigh-definition printing any font,can also printing dot matrix font.         ( imitation dot matrix font)
7. Printing symbols: It can print various trademarks, logos, Chinese or foreign languages fonts, numbers, characters and special signs.
8. Lines of printing:  can edit the quantity of lines within the valid height ( 18mm).
9. Printing UPC£ºIITF/CODE39/JAN/EAN128/QR/ Code 2D /Code 1D
10. Height of Character£ºCan choose the character height within print height range 1mm¡«18mm
11. Width of Spray Head: 18mm
12. Best printing Distance: The distance between the spray head and printing objects should be 5-10mm
13. Printing Direction: The spray head can be adjusted 0-180¡ã vertical downward or vertical updward, from left to right horizontally

14. Automatic Printing: Date, time, lot No, Shift No, Sequence No etc.
15. Message Memory£º Limitless memory space for messages
16. Text Length£ºMax. 1000 characters.
17. Sequence No: 1-8 variable numbers
18. Printing Speed: Maximum 35 meters /minute and the speed isn't influenced when printing more lines.
19. Colors of Ink Cartridges£ºBlack, Red, Blue, White
20. Printing Direction:  Forward, reverse, vertical downward or vertical updward.
21. Printing material: Metal, plastic, wood, aluminum film, carton or building material surface ect.
22. Applicable products£ºDisplay screen of mobile phone, drink lids, food package bags, medicine package, steel-plastic door & window, aluminum alloy, battery, plastic tube, steel plate, PCB, chip, woven bag, egg, brake, housing for mobile phone, carton etc.
23. Ink Cartridge£ºSolvant based environmentally friendly ink cartridge or oil based ink cartridge. No need to use external gas source or dilution.

24. Main Interface£ºUSB, encoder,sensor
25. Printer Dimension£º40.2x24.1x 10cm
26. Auto voltage selection£ºAC110- 220V
27. Energy Consumption£ºAverage lower than 100W
28. Weight of printer: 15 KGS
29. Operation Temperature£º1¡æ-37¡æ£»Humidity 30% -70%

¡¡

High quality, new standard, high resolution inkject printer in production line
The appearance of AuJet A180-S ink-jet printer sets a brandnew milestone in the ink-jet printer industry. This model adopts sophiscated hardware and advanced control technology. It¡¯s a very powerful printer for industry users. This printer enables its user easily print any needed content in the production line. In addition to the high-solution print result, the stable performance quality also leads to the lower operating cost, which exceeds customer¡¯s expectation and keep customers satisfied. And besides these benefits, there are more ¡­

Extra high-definition printing result
AuJet high-resolution ink-jet printer has 128pcs independent spray heads, which is more than any other dot matrix printer available in the market. The resolution is 300DPI ( Equal to 300 dots per square inch). The printed picture or texts are very clear and consistent. The extra high DPI makes the printing results very close to prining book and newspaper.

Cleaner printing
What you need to do is to just install the ink cartridge in the printer. There is no need to mix with any other dilution. Therefore it will fundamentally avoid the ink leakage problem. And the printing is clean and pollution free.

NO need to use external gas source
Most dot matrix printers require external gas source and dilution. While this model requires neither, thus saving the cost of gas.

No need to use dilution
This ink jet printer doesn¡¯t need dilution, it can therefore save the cost of consumables and dilutions.The ratio between ink and dilution is about 1:3 to 1:8. Therefore, you can save up to RMB 10,000 to 20,000 per year when using our printer.

Noise-Free
Because the printer is working silently without external gas source, it¡¯s noise free. Generally speaking, ordinary printers produce about 55 db, and it will reach over 100 db with external gas source. Our printer can reduce the environment pollution and possible hearing damage to operators.

No irritating odor
Printers which require organic solvents will produce irritating odor and pollute the environment because a huge amount of solvents will be volatile during the ink recycling process. This model doesn¡¯t use dilution, producing no irriating odor and having minimum influence on the environment.

No Pollution
This model user environmentally friendly and non-toxic ink catridge and cause no pollution to the printed objects. It¡¯s the best printer to be used in pharmaceuticals, food and beverage manufacturers.

Printing speed isn¡¯t influenced when adding lines.
The maximum speed is 35m/minute for the model . While for most inkjet printers, the nominal printing speed refers to the 1-line printing only, when printing 4 lines, the speed is only a quarter of the nornimal speed.

High-definition printing result, which can also print dot matrix.
Can also print imitation dot matrix with printing results similar to dot matrix printing

Can print characters big or small, One printer can do jobs of Two printers.
The character height for ordinary small-character printer is about 2mm¡ª12mm. While for this model, the maximum character height is 18mm
